System Schröders/Wiedemann-Technik

Fire Security Gates, Doors and Flaps for the Scheibengipfel Tunnel

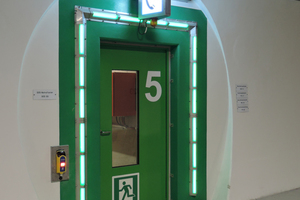

Seven single-leaf stainless steel doors of type “System Schröders TSN-11” were installed along the carriageway of the Scheibengipfel Tunnel, which protect the connecting passages to the rescue tunnel from fire and smoke
Seven single-leaf stainless steel doors of type “System Schröders TSN-11” were installed along the carriageway of the Scheibengipfel Tunnel, which protect the connecting passages to the rescue tunnel from fire and smoke

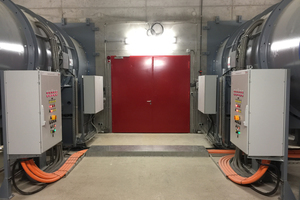

The doors in the technical area for the axial fans are additionally designed to cope with increased pressure and suction forces of up to 5 kPa
The doors in the technical area for the axial fans are additionally designed to cope with increased pressure and suction forces of up to 5 kPa

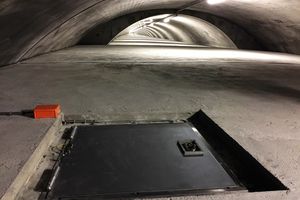

Three ceiling flaps “System Schröders THF” were installed to protect the exhaust air duct against fire and smoke
Three ceiling flaps “System Schröders THF” were installed to protect the exhaust air duct against fire and smoke

Since the Scheibengipfel Tunnel with a length of 1.9 km was opened for traffic on October 27, 2017, the city centre of Reutlingen (Germany) has had to cope with as many as 20 000 fewer vehicles. This signifies less traffic and an improvement of the city’s air quality. However, observance of fire protection accompanies the opening of a tunnel. The Wiedemann-Technik company from Husum played a role in this during its construction. It supplied special smoke and fire security gates, doors and flaps, which among other things seal off the connecting passages between the tunnel and the evacuation...

Find out more in

tunnel 04/2018

Find out more in

tunnel 04/2018
